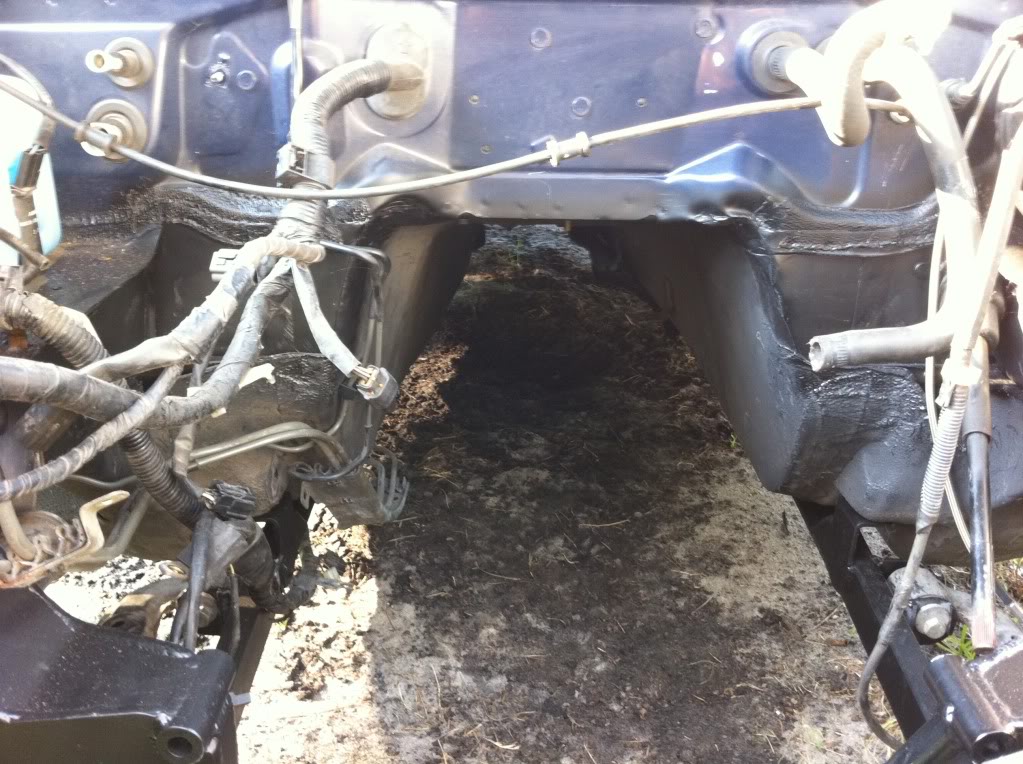

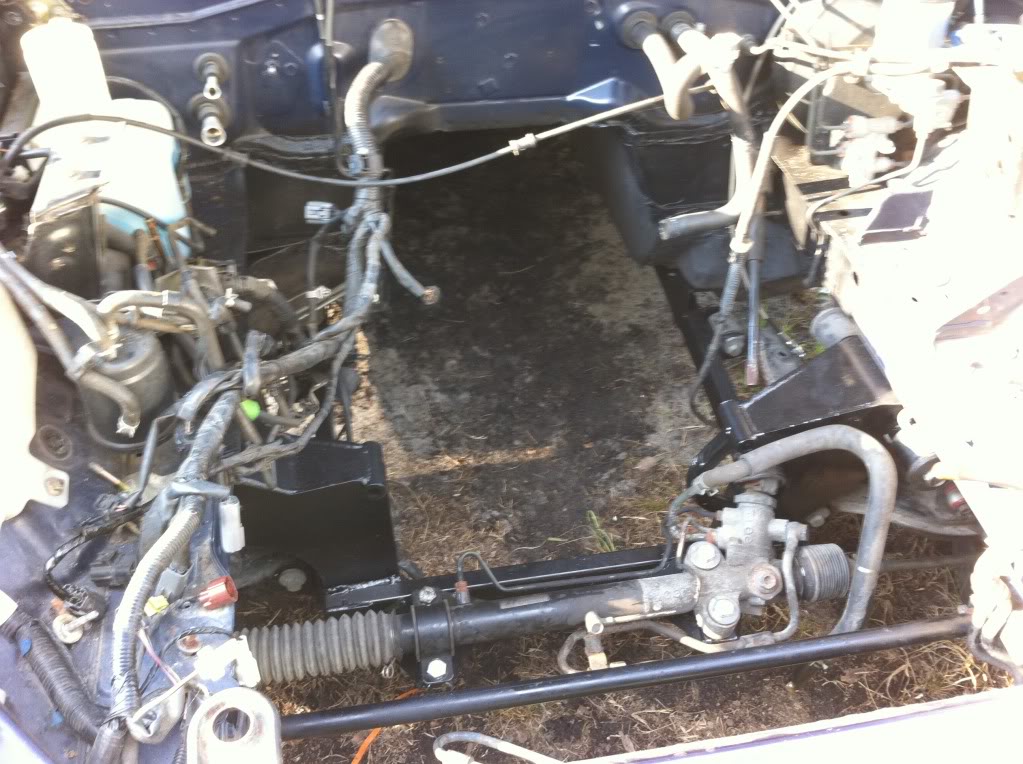

so the swap is well under way! i have ordered all the parts, only thing im waiting on is the valve covers, here are some basic shots of the k-member in place, we have cut the notches and test fitted the LS2, she will be up and running here in the next few weeks!

not much but ill take more soon (my c5's drive shaft took a dump on me last week so ive been working on that)

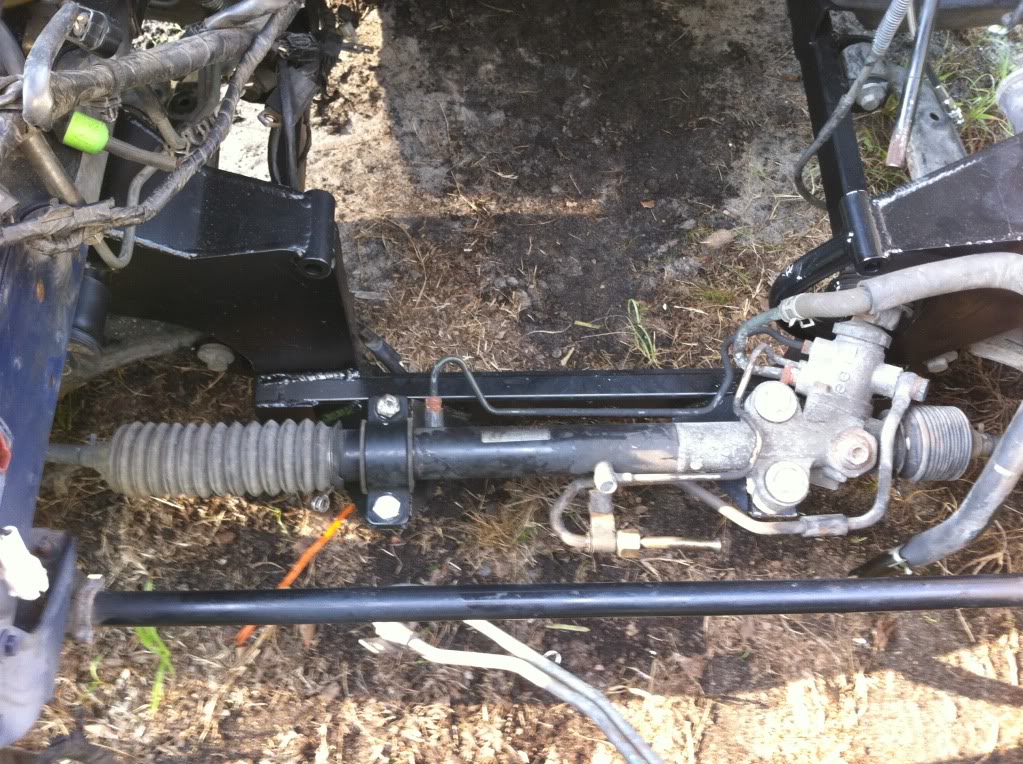

the steering shaft needs to be modified still, i could send it in however i have plenty of material and a tig welder to do so... so no worries



and there it is prior...

here are the specs

LS2
VRX 6 Cam
Fast 90 intake

Proshifted T56 (straight cut gears)

Stock Miata LS rear end with a torsen and 3.91 gears

i may swap the rear end eventually for the 8.8 that i actually have on hand along with the boss frog frame, but i want to see how the stocker does first

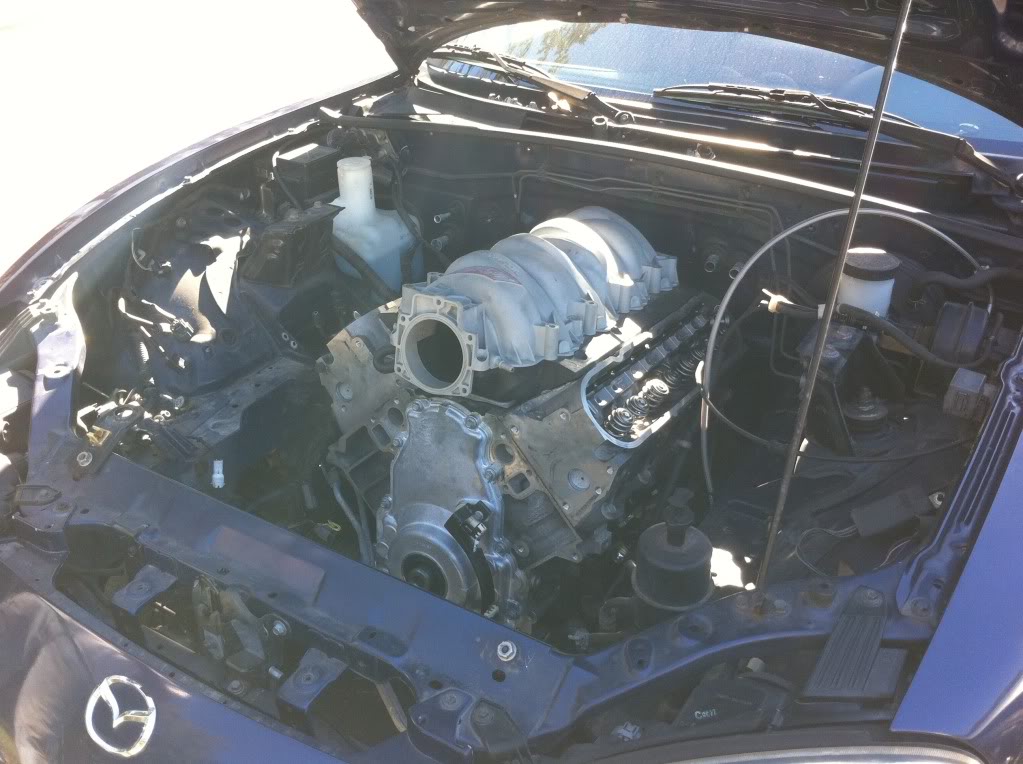

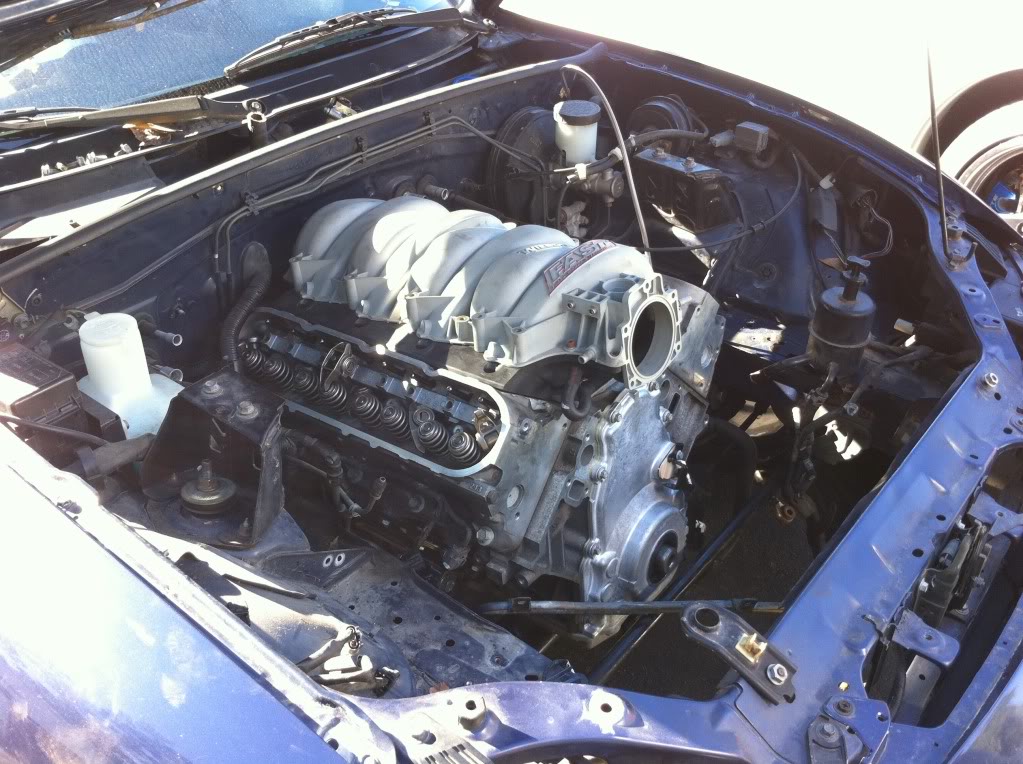

just an update, engine/ trans in. shes coming along nicley, starting to run the fuel lines then to wire it up.

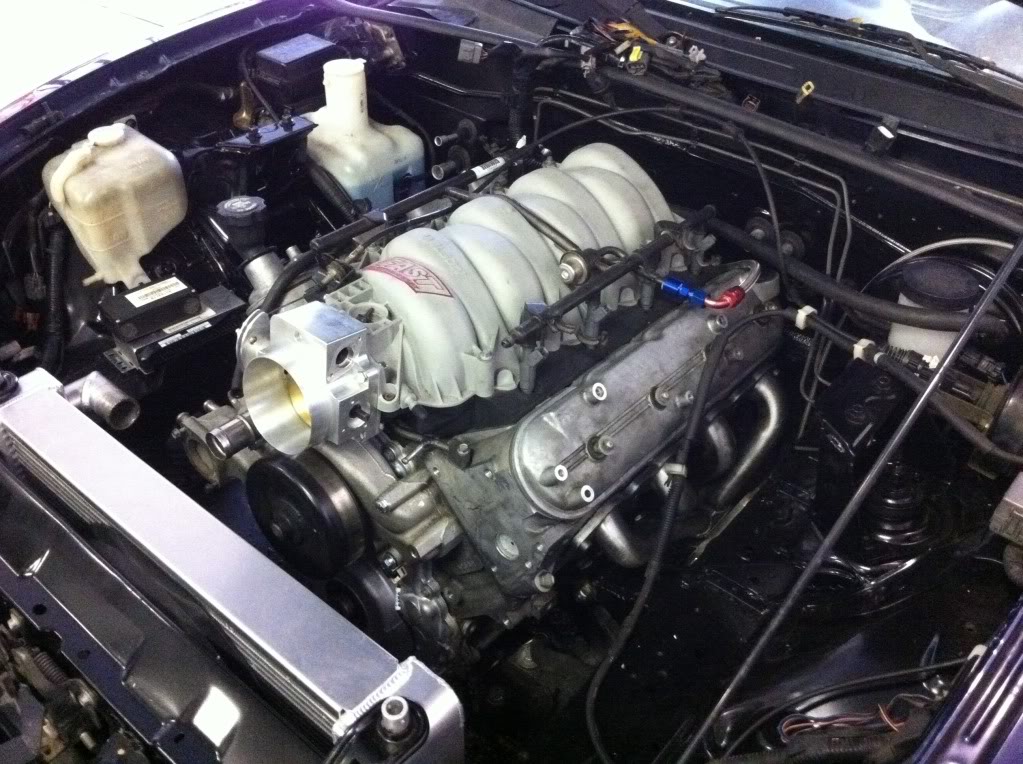

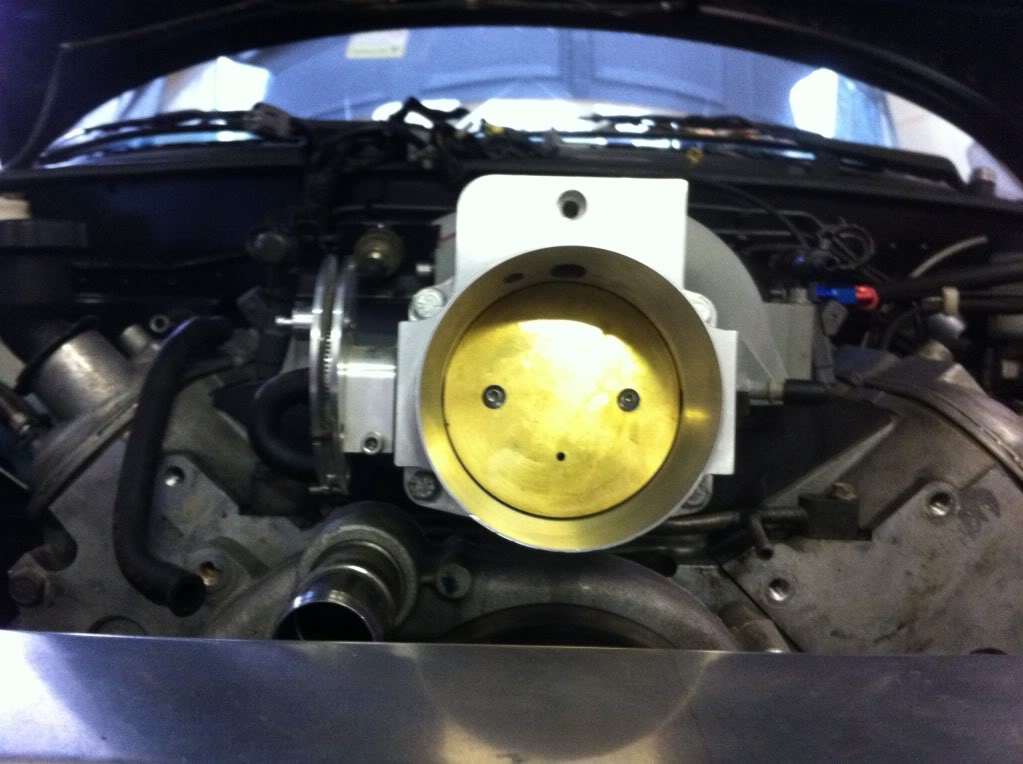

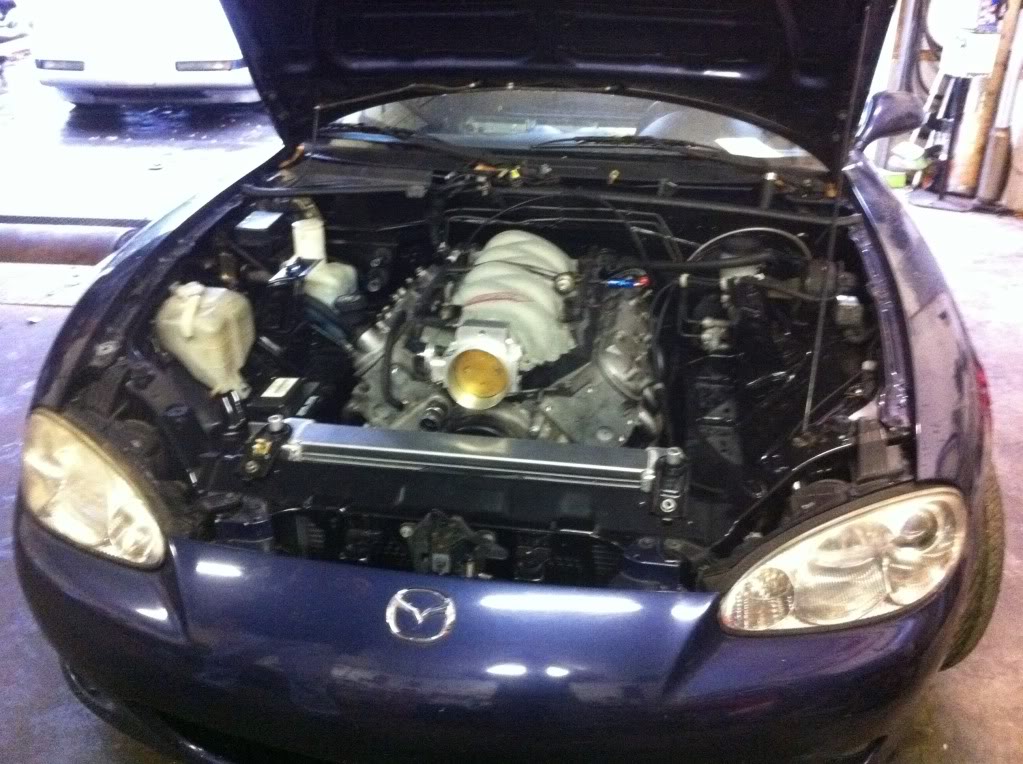

water pump installed, intake, tb, rockers and valve covers all on. recieved my c5 alternator and bracket today and will install it tomorrow. here are a few pics

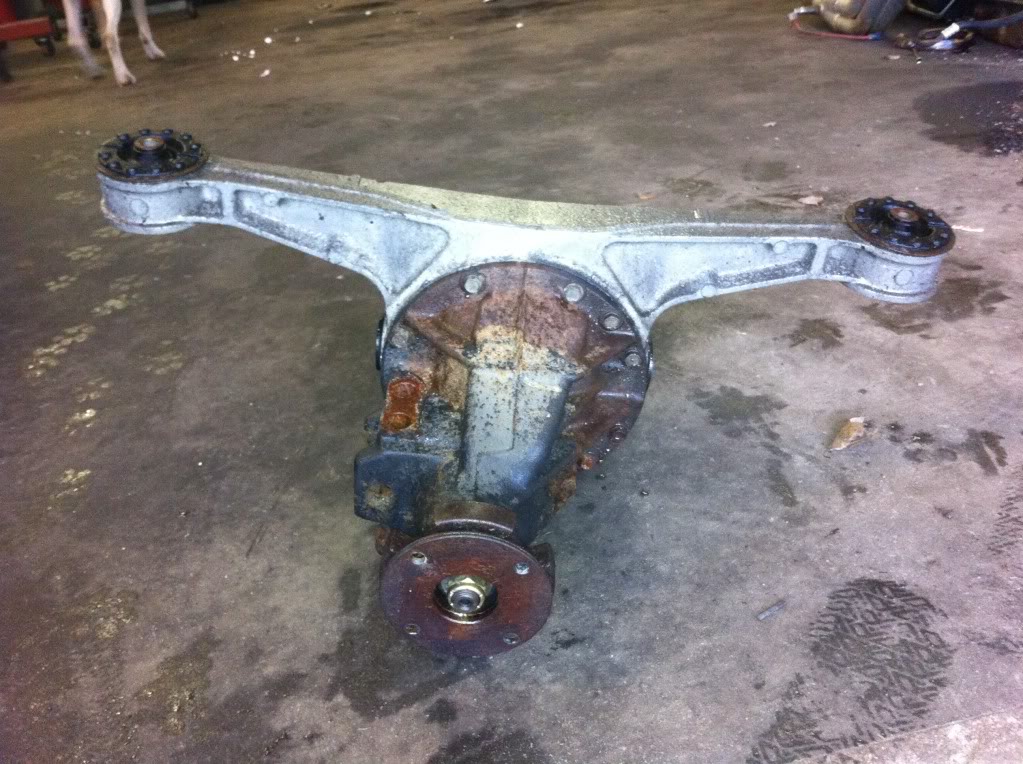

here is the stock 3.9 torsen diff. pm me if you'd like to buy it... cheap



http://cgi.ebay.com/ebaymotors/2002-...item4aa610da3c
and theres the link for the diff if anyone is interested.



Thanks for the pictures. Things look great and you're moving along nicely. Please keep us posted. Thanks, Tony



How was your hood clearance with the fast intake? My LS3 intake is really close and I was wanting to go with a 102mm fast but thought it may sit up to high for stock clearance.



Any updates on the swap?
